JAX 101

Given the length of the official JAX tutorial, this note distills the core concepts, providing an quick reference after reading the original tutorial.

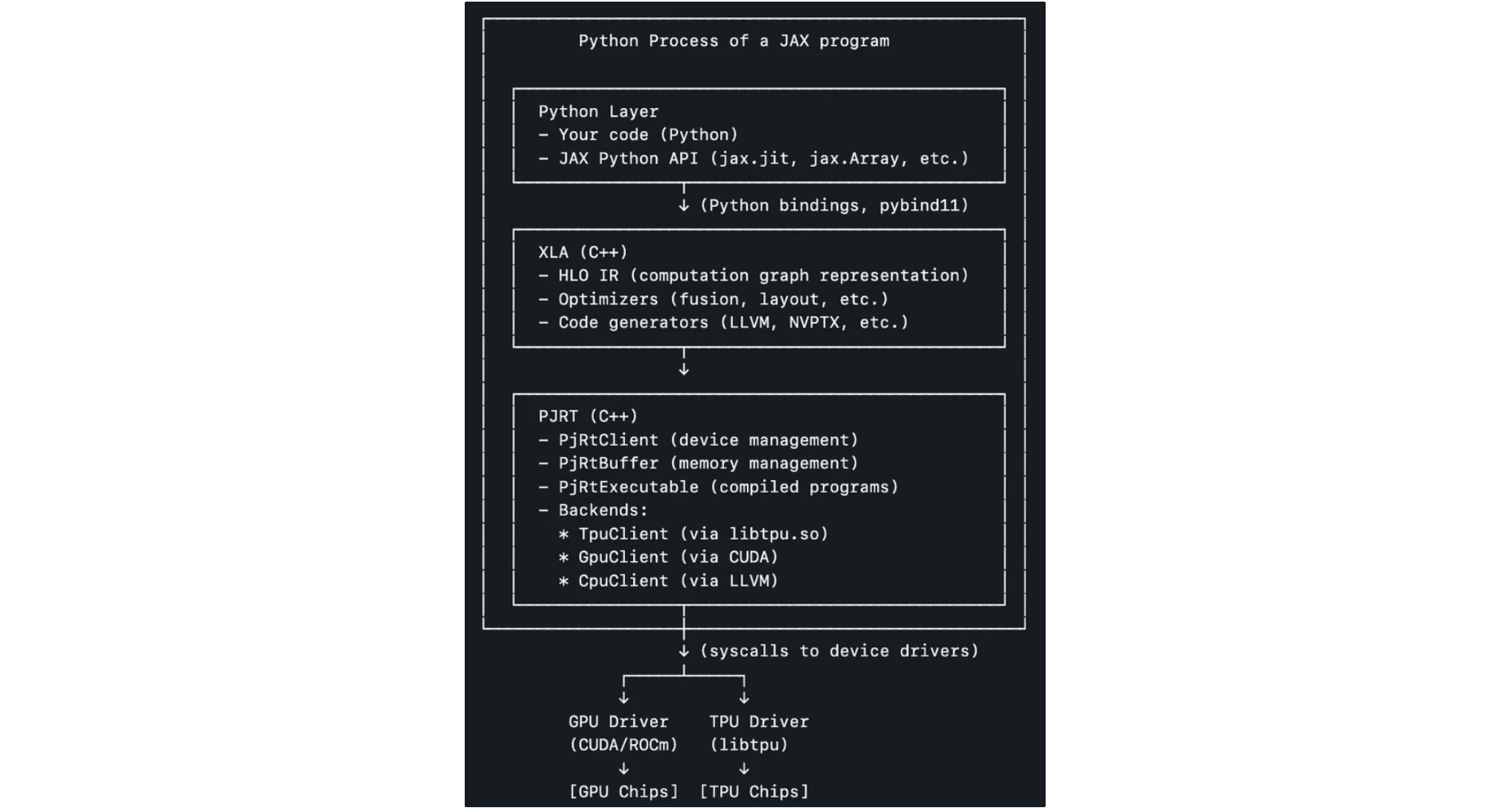

High-level JAX stack

Source: Yi Wang’s linkedin post

Quick start

https://docs.jax.dev/en/latest/notebooks/thinking_in_jax.html
JAX arrays are immutable.
device: x.devices(); sharding: x.sharding
JIT function: f_compiled = jit(f)
- Not all JAX code can be JIT compiled, as it requires array shapes to be static & known at compile time.

def get_negatives(x):
  return x[x < 0]
x = jnp.array(np.random.randn(10))
jit(get_negatives)(x)
# NonConcreteBooleanIndexError: Array boolean indices must be concrete; got bool[10]

jax.vmap: write your function with a single data point (e.g., one vector, one image). Then jax.vmap transforms it to process the entire batch.
- can be composed with jax.jit

import jax
import jax.numpy as jnp

# works on a single vector
def predict(params, input_vector):
  return jnp.dot(params['W'], input_vector) + params['b']

key = jax.random.key(0)
params = {
    'W': jax.random.normal(key, (3, 5)),
    'b': jax.random.normal(key, (3,))
}
single_vector = jnp.ones(5)
result_single = predict(params, single_vector)

batch_of_vectors = jnp.ones((8, 5))
# Vectorize predict using vmap:
# in_axes=(None, 0):
#  - None: Don't map over 'params' (W and b are shared across the batch).
#  - 0: Map over the 0-th axis of 'input_vector' (the batch dimension).
# out_axes=0: The output should have the batch dimension at axis 0.
batched_predict = jax.vmap(predict, in_axes=(None, 0), out_axes=0)
results_batch = batched_predict(params, batch_of_vectors)

# Expected shape: (batch_size, output_dim) => (8, 3)

random key: never reuse keys (unless you want identical outputs). In order to generate different and independent samples, you must jax.random.split the key explicitly before passing it to a random function:

for i in range(3):
  new_key, subkey = random.split(key)
  del key  # The old key is consumed by split() -- we must never use it again.

  val = random.normal(subkey)
  del subkey  # The subkey is consumed by normal().

  print(f"draw {i}: {val}")
  key = new_key  # new_key is safe to use in the next iteration.

The Sharp Bits (aka common mistakes)

https://docs.jax.dev/en/latest/notebooks/Common_Gotchas_in_JAX.html

JAX works with pure functions
- all inputs are in function params, all outputs are function returns
- given same inputs, we always have same outputs (e.g., print is not allowed in the function)

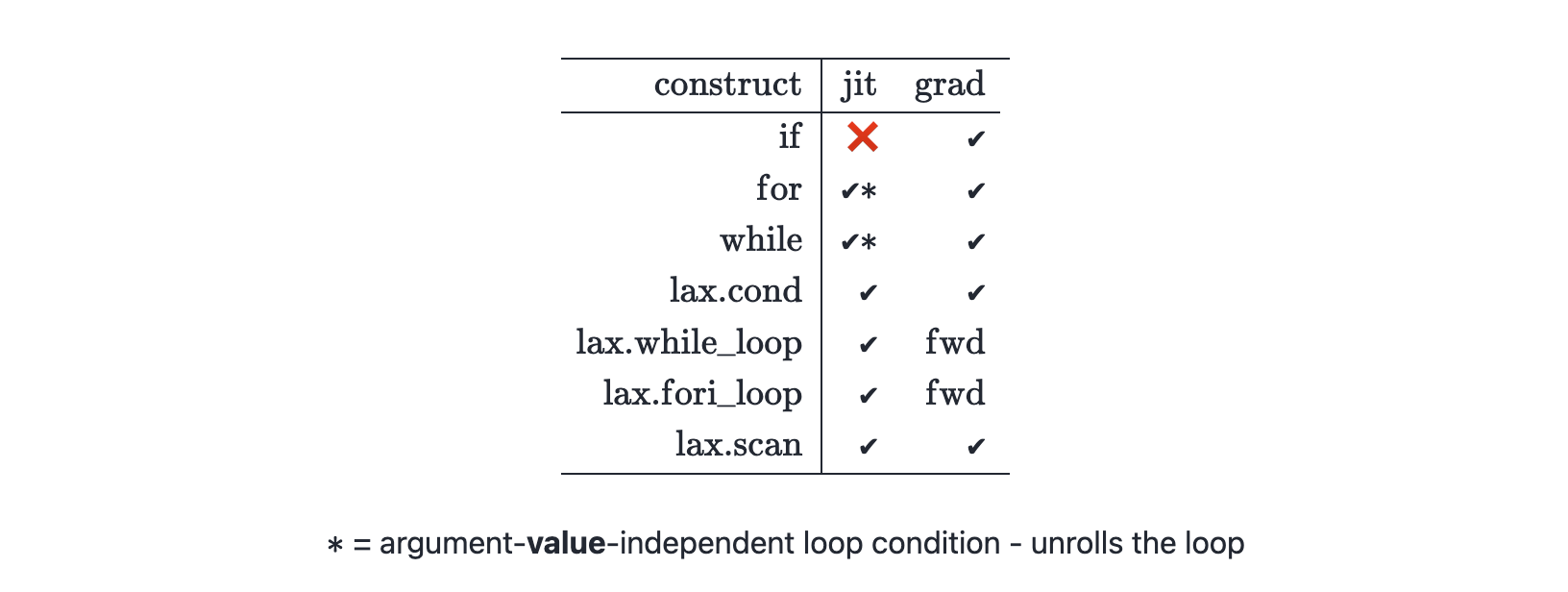

- not recommended to use iterators and any control-flow primitive in jit function → error or unexpected results
in-place updates
- JAX arrays are immutable. In-place updates like jax_array[1, :] = 1.0 yields an error
- use .at instead: updated_array = jax_array.at[1, :].set(1.0), which is a out-of-place update that returns a new array.
  - similarly, we have other ops like new_jax_array = jax_array.at[::2, 3:].add(7.0)
out-of-bounds indexing
- when the indexing op is an array index update (e.g. index_add or scatter-like primitives), updates at out-of-bounds indices will be skipped
  - index_add: jax_array.at[index].add(value) → lowered into a scatter operation on GPU/TPU
  - scatter primitives: you give indices, and updates, then JAX writes them into an array
- when the op is an array index retrieval (e.g. NumPy indexing or gather-like primitives) the index is clamped to the bounds since something must be returned
  - e.g., jnp.arange(10)[11] → the last value will be returned
non-jax-array inputs
- don’t use python list, tuple or other non-array types as inputs for JAX → performance issues
- you can explicitly convert it to a jax array instead: jnp.sum(jnp.array(x))
dynamic shapes
- code used within transforms (like jax.jit, jax.vmap, and jax.grad) requires all output arrays and intermediate arrays to have static shape
JAX by default enforces single-precision numbers (claims dtype=jnp.float64 doesn’t work)
- to use double, add jax_enable_x64 configuration variable at startup

JAX 101

1. JIT

JIT: make python function to be executed efficiently in XLA. recall this part

How? → reducing a function to a sequence of primitives (can be viewed using jax.make_jaxpr())
It does not capture the side-effect code (like print(), append the input to an external list, etc.). Don’t JIT-compile impure functions!
- use jax.debug.print() to debug printing instead (but performance will be worse)
When tracing, JAX wraps each arg by a tracer object (by default with shape and dtype), which records all JAX ops during the function call.
The tracer records are used to reconstruct the entire function → output a jaxpr

from jax import jit
import jax.numpy as jnp
import numpy as np

@jit
def f(x, y):
  print("Running f():")
  print(f"  x = {x}")
  print(f"  y = {y}")
  result = jnp.dot(x + 1, y + 1)
  print(f"  result = {result}")
  return result

x = np.random.randn(3, 4)
y = np.random.randn(4)
f(x, y)

# Running f():
#  x = JitTracer<float32[3,4]>
#  y = JitTracer<float32[4]>
#  result = JitTracer<float32[3]>

If we have a Python conditional, jaxpr only knows about the branch we take.

JIT won’t work for the following code

traced values like x and n, can only affect control flow via their static attributes (like shape or dtype), but not via their values
1
2
3
4
5
6
7
def g(x, n): i = 0 while i < n: i += 1 return x + i jax.jit(g)(10, 20) # Raises an error
we can use special Control flow operators like jax.lax.cond().

or we can JIT-compile only part of the function

@jax.jit
def loop_body(prev_i):
  return prev_i + 1

def g_inner_jitted(x, n):
  i = 0
  while i < n:
    i = loop_body(i)
  return x + i

we can use static_argnums or static_argnames, but have to re-compile the function for every new value of the specified static input

def f(x):
  if x < 3:
    return 3. * x ** 2
  else:
    return -4 * x

f = jit(f, static_argnames='x')

print(f(2.))

from functools import partial

@partial(jit, static_argnums=(1,))
def f(x, neg):
  return -x if neg else x

f(1, True)

JIT caching: when first calling a jit function, the function get compiled and cached.

2. Automatic vectorization

suppose we have a single conv function

x = jnp.arange(5)
w = jnp.array([2., 3., 4.])

def convolve(x, w):
  output = []
  for i in range(1, len(x)-1):
    output.append(jnp.dot(x[i-1:i+2], w))
  return jnp.array(output)

convolve(x, w)

with jax.vmap(), it can receive batches of inputs (default batch dimension = 0)

xs = jnp.stack([x, x])
ws = jnp.stack([w, w])
auto_batch_convolve = jax.vmap(convolve)
auto_batch_convolve(xs, ws)

we can use in_axes and out_axes to specify batch dimensions

auto_batch_convolve_v2 = jax.vmap(convolve, in_axes=1, out_axes=1)
xst = jnp.transpose(xs)
wst = jnp.transpose(ws)
auto_batch_convolve_v2(xst, wst)

example: convolve to a single set of weights w with a batch of vectors x

1 2	`batch_convolve_v3 = jax.vmap(convolve, in_axes=[0, None]) batch_convolve_v3(xs, w)`

jax.vmap can be combined with jax.jit

1	`jitted_batch_convolve = jax.jit(auto_batch_convolve)`

3. Pytrees

3.1 basics

a Pytree is simply a container of arrays. It can be a list, a tuple, a dict, or a nested combination of these. JAX functions are designed to accept these structures as inputs and return them as outputs smoothly.
a leaf is anything that’s not a pytree, such as an array, but a single leaf is also a pytree
pytree: any tree-like structure built out of container-like Python objects
- container-like: in pytree container registry; defaults are lists, tuples, and dicts
- object whose type is not in the pytree container registry → leaf node
in ML, a pytree can contain: model weights, dataset entries, RL observations, etc.

jax.tree.leaves(): flattened leaves from the trees

example_trees = [
    [1, 'a', object()],
    (1, (2, 3), ()),
    [1, {'k1': 2, 'k2': (3, 4)}, 5],
    {'a': 2, 'b': (2, 3)},
    jnp.array([1, 2, 3]),
]
for pytree in example_trees:
  leaves = jax.tree.leaves(pytree)
  print(f"{repr(pytree):<45} has {len(leaves)} leaves: {leaves}")

[1, 'a', <object object at 0x7d8bcaf08490>]   has 3 leaves: [1, 'a', <object object at 0x7d8bcaf08490>]
(1, (2, 3), ())                               has 3 leaves: [1, 2, 3]
[1, {'k1': 2, 'k2': (3, 4)}, 5]               has 5 leaves: [1, 2, 3, 4, 5]
{'a': 2, 'b': (2, 3)}                         has 3 leaves: [2, 2, 3]
Array([1, 2, 3], dtype=int32)                 has 1 leaves: [Array([1, 2, 3], dtype=int32)]

jax.tree.map(f, tree): apply a function to every leaf in a nested data structure

jax.tree.map()

list_of_lists = [
    [1, 2, 3],
    [1, 2],
    [1, 2, 3, 4]
]
jax.tree.map(lambda x: x*2, list_of_lists)
# [[2, 4, 6], [2, 4], [2, 4, 6, 8]]

1 2	`another_list_of_lists = list_of_lists jax.tree.map(lambda x, y: x+y, list_of_lists, another_list_of_lists)`

view pytree definition

1
2
3

from jax.tree_util import tree_structure
print(tree_structure(object))
# PyTreeDef(*)

pytree and JAX transformations
- many JAX functions operates over pytrees of arrays
- all JAX function transformations can be applied to functions whose inputs and outputs are pytrees of arrays
in_axes and out_axes arguments to jax.vmap() can also be pytrees (structure must match the corresponding arguments)
- example: function f has has an input like (a1, {"k1": a2, "k2": a3})
  - a variable a1
  - a dict containing keys k1 (value a2) and k2 (value a3)
- we can use jax.vmap(f, in_axes=(None, {"k1": None, "k2": 0}))
  - you want to vectorize (loop over) the data in k2, but not a1 or k1 (they are constants/broadcasted)
- a single leaf value can be applied to an entire sub-pytree
  1
  2
  jax.vmap(f, in_axes=(None, 0)) # equivalent to (None, {"k1": 0, "k2": 0})
  1
  jax.vmap(f, in_axes=0) # equivalent to (0, {"k1": 0, "k2": 0})

3.2 key paths

each leaf has a key path (i.e., a list of keys, list length = tree depth of the leaf)
key type depends on node type; e.g., key type for dicts is different from key type for tuples
- SequenceKey(idx: int): For lists and tuples.
  - this key type is used for nodes that are ordered sequences and accessed by an integer index.
  - key content: An integer index specifying the position.
- DictKey(key: Hashable): For dictionaries.
- GetAttrKey(name: str): For namedtuples and preferably custom pytree nodes (more in the next section)

jax.tree_util.tree_flatten_with_path(): similar to jax.tree.flatten(), but returns flattened key paths

example_trees = [
    [1, 'a', object()],
    (1, (2, 3), ()),
    jnp.array([1, 2, 3]),
]
jax.tree_util.tree_flatten_with_path(example_trees)
# ([((SequenceKey(idx=0), SequenceKey(idx=0)), 1),
#  ((SequenceKey(idx=0), SequenceKey(idx=1)), 'a'),
#  ((SequenceKey(idx=0), SequenceKey(idx=2)), <object at 0x70d4e8c6b600>),
#  ((SequenceKey(idx=1), SequenceKey(idx=0)), 1),
#  ((SequenceKey(idx=1), SequenceKey(idx=1), SequenceKey(idx=0)), 2),
#  ((SequenceKey(idx=1), SequenceKey(idx=1), SequenceKey(idx=1)), 3),
#  ((SequenceKey(idx=2),), Array([1, 2, 3], dtype=int32))],
# PyTreeDef([[*, *, *], (*, (*, *), ()), *]))

jax.tree_util.tree_map_with_path(): similar to jax.tree.map(), but the inputs are also key paths
jax.tree_util.keystr(): given a key path, returns a reader-friendly string

example

import collections

ATuple = collections.namedtuple("ATuple", ('name'))

tree = [1, {'k1': 2, 'k2': (3, 4)}, ATuple('foo')]
flattened, _ = jax.tree_util.tree_flatten_with_path(tree)

for key_path, value in flattened:
  print(f'Value of tree{jax.tree_util.keystr(key_path)}: {value}')

# Value of tree[0]: 1
# Value of tree[1]['k1']: 2
# Value of tree[1]['k2'][0]: 3
# Value of tree[1]['k2'][1]: 4
# Value of tree[2].name: foo

3.3 common mistakes

accidentally introducing tree nodes instead of leaves

a_tree = [jnp.zeros((2, 3)), jnp.zeros((3, 4))]

# Try to make another pytree with ones instead of zeros.
shapes = jax.tree.map(lambda x: x.shape, a_tree)
jax.tree.map(jnp.ones, shapes)
# [(Array([1., 1.], dtype=float32), Array([1., 1., 1.], dtype=float32)),
# (Array([1., 1., 1.], dtype=float32), Array([1., 1., 1., 1.], dtype=float32))]

shape of an array is a tuple, which is a pytree node, with its elements as leaves.
the map instead of calling jnp.ones on e.g. (2, 3), it’s called on 2 and 3.

jax.tree_util functions treat None as the absence of a pytree node, not as a leaf

jax.tree.leaves([None, None, None])
# []

# fix
jax.tree.leaves([None, None, None], is_leaf=lambda x: x is None)

3.4 common pytree patterns

transposing pytrees

transpose: turn a list of trees into a tree of lists

option1 (basic): jax.tree.map()

def tree_transpose(list_of_trees):
  return jax.tree.map(lambda *xs: list(xs), *list_of_trees)

# Convert a dataset from row-major to column-major.
episode_steps = [dict(t=1, obs=3), dict(t=2, obs=4)]
tree_transpose(episode_steps)
# *xs are tuples {'obs': (3, 4), 't': (1, 2)}
# with lambda, they are converted to lists {'obs': [3, 4], 't': [1, 2]}

option2 (comple but flexible): jax.tree.transpose()

jax.tree.transpose(
  outer_treedef = jax.tree.structure([0 for e in episode_steps]),
  inner_treedef = jax.tree.structure(episode_steps[0]),
  pytree_to_transpose = episode_steps
)

4. Intro to parallel programming

4.1 Basics

this tutorial is for SPMD program: same computation (e.g., forward pass), different data (e.g., different inputs in a batch) in parallel on different devices (e.g., TPUs)
we cover auto sharding (jax.jit()), explicit sharding, and fully manual sharding (jax.shard_map(), per-device sharding + explicit collectives)
jax.Array is designed with distributed data and computation in mind. It has jax.sharding.Sharding object.

by default, arrays are on a single device

import jax
jax.config.update('jax_num_cpu_devices', 8)
arr = jnp.arange(32.0).reshape(4, 8)
arr.devices()
# {CpuDevice(id=0)}

visualize sharding: jax.debug.visualize_array_sharding()
define sharding

from jax.sharding import PartitionSpec as P
# 8 devices (2x4), 1st dimesion called 'x', 2nd 'y'
mesh = jax.make_mesh((2, 4), ('x', 'y'))
# array row mapped to x-axis, col to y-axis
sharding = jax.sharding.NamedSharding(mesh, P('x', 'y'))
arr_sharded = jax.device_put(arr, sharding)

4.2 auto sharding via `jax.jit()`

you specify how inputs/outputs are sharded, jax.jit() will automatically
- partition everything inside
- compile inter-device communications
example with element-wise function: same sharding as inputs

@jax.jit
def f_elementwise(x):
  return 2 * jnp.sin(x) + 1
result = f_elementwise(arr_sharded)
print("shardings match:", result.sharding == arr_sharded.sharding)
# True

example with reduce

@jax.jit
def f_contract(x):
  return x.sum(axis=0)
result = f_contract(arr_sharded)
jax.debug.visualize_array_sharding(result)
# ┌───────┬───────┬───────┬───────┐
# │CPU 0,4│CPU 1,5│CPU 2,6│CPU 3,7│
# └───────┴───────┴───────┴───────┘

4.3 Explicit sharding (sharding-in-types)

the JAX-level type of a value includes how the value is sharded

1
2
3

some_array = np.arange(8)
print(f"JAX-level type of some_array: {jax.typeof(some_array)}")
# JAX-level type of some_array: int32[8]

we can query the type in jit

@jax.jit
def foo(x):
  print(f"{jax.typeof(x)}")
  return x + x

set up an explicit-sharding mesh

from jax.sharding import AxisType
mesh = jax.make_mesh((2, 4), ("X", "Y"),
                     axis_types=(AxisType.Explicit, AxisType.Explicit))
replicated_array = np.arange(8).reshape(4, 2)
sharded_array = jax.device_put(replicated_array,
		jax.NamedSharding(mesh, P("X", None)))
print(f"replicated_array type: {jax.typeof(replicated_array)}")
print(f"sharded_array type: {jax.typeof(sharded_array)}")
# replicated_array type: int32[4,2]
# sharded_array type: int32[4@X,2]
#   -> 1st dimesion sharded along X, others are replicated

4.4 Manual parallelism with shard_map

you write the function for a single shard, and jax.shard_map() constructs the full function

shard_map() maps over shards

in_specs determines the shard sizes
- split 32 elements in arr to 8 devices (4 elements / device)
out_specs identifies how blocks are assembled back together
- the outputs coming from the devices represent chunks split along axis 'x'
- it must concatenate (glue) these 8 chunks back together in order to form the final global array

mesh = jax.make_mesh((8,), ('x',))

@jax.jit
def f_elementwise(x):
  return 2 * jnp.sin(x) + 1

f_elementwise_sharded = jax.shard_map(
    f_elementwise,
    mesh=mesh,
    in_specs=P('x'),
    out_specs=P('x'))

arr = jnp.arange(32)
f_elementwise_sharded(arr)

the function can only see a single shard

x = jnp.arange(32)
print(f"global shape: {x.shape=}")
def f(x):
  print(f"device local shape: {x.shape=}")
  return x * 2
y = jax.shard_map(f, mesh=mesh, in_specs=P('x'), out_specs=P('x'))(x)
# global shape: x.shape=(32,)
# device local shape: x.shape=(4,)

be careful about aggregation-like functions

def f(x):
  return jnp.sum(x, keepdims=True)
jax.shard_map(f, mesh=mesh, in_specs=P('x'), out_specs=P('x'))(x)
# Array([  6,  22,  38,  54,  70,  86, 102, 118], dtype=int32)

you need jax.lax.psum() to get a single sum

def f(x):
  sum_in_shard = x.sum()
  return jax.lax.psum(sum_in_shard, 'x')
jax.shard_map(f, mesh=mesh, in_specs=P('x'), out_specs=P())(x)
# Array(496, dtype=int32)

4.5 Data / computation placement on devices

In JAX, the computation follows data placement
2 placement properties
- the device where the data resides
- whether it is committed to the device or not
- default: uncommitted on jax.devices()[0]
data with jax.device_put() becomes committed to the device. example: arr = device_put(1, jax.devices()[2])

5. Structured control flow with JIT

if we want to use control flow that’s traceable, and that avoids un-rolling large loops, there are 4 structured control flow:

lax.cond()

semantics:

def cond(pred, true_fun, false_fun, operand):
  if pred:
    return true_fun(operand)
  else:
    return false_fun(operand)

example:

from jax import lax

operand = jnp.array([0.])
lax.cond(True, lambda x: x+1, lambda x: x-1, operand)
# --> array([1.], dtype=float32)
lax.cond(False, lambda x: x+1, lambda x: x-1, operand)
# --> array([-1.], dtype=float32)

lax.while_loop()

semantics:

def while_loop(cond_fun, body_fun, init_val):
  val = init_val
  while cond_fun(val):
    val = body_fun(val)
  return val

example:

init_val = 0
cond_fun = lambda x: x < 10
body_fun = lambda x: x+1
lax.while_loop(cond_fun, body_fun, init_val)
# --> array(10, dtype=int32)

lax.fori_loop()

semantics:

def fori_loop(start, stop, body_fun, init_val):
  val = init_val
  for i in range(start, stop):
    val = body_fun(i, val)
  return val

example:

init_val = 0
start = 0
stop = 10
body_fun = lambda i,x: x+i
lax.fori_loop(start, stop, body_fun, init_val)
# --> array(45, dtype=int32)

6. Static vs traced ops

the following will lead to an error, because when we use jnp.array and jnp.prod on the static value x.shape, it becomes a traced value

import jax.numpy as jnp
from jax import jit

@jit
def f(x):
  return x.reshape(jnp.array(x.shape).prod())

x = jnp.ones((2, 3))
f(x)

use numpy for operations that should be static (i.e. done at compile-time)
use jax.numpy for operations that should be traced (i.e. compiled and executed at run-time)
fix:

from jax import jit
import jax.numpy as jnp
import numpy as np

@jit
def f(x):
  # np.prod will get 6 during compile-time
  # while jnp.prod is like "I will calculate this product later on the GPU"
  return x.reshape((np.prod(x.shape),))


x = jnp.ones((2, 3))
f(x)

7. Stateful computation

JAX transformations (like jit(), vmap(), and grad()) replies on pure functions
how to make stateful computations? → add explicit state as arg
suppose we have

import jax
import jax.numpy as jnp

class Counter:
  def __init__(self):
    self.n = 0

  def count(self) -> int:
    self.n += 1
    return self.n

  def reset(self):
    self.n = 0

to use it with jax.jit(), we can do

CounterState = int

class CounterV2:
  def count(self, n: CounterState) -> tuple[int, CounterState]:
    # You could just return n+1, but here we separate its role as
    # the output and as the counter state for didactic purposes.
    return n+1, n+1

  def reset(self) -> CounterState:
    return 0

counter = CounterV2()
state = counter.reset()

for _ in range(3):
  value, state = counter.count(state)

#JAX #TPU

JAX 101

https://gdymind.github.io/2025/12/22/jax-101/

Author

gdymind

Posted on

December 22, 2025

Licensed under

Memory usage breakdown during Training Previous

Jeff Dean & Gemini team QA at NeurIPS ‘25 Next

JAX 101

High-level JAX stack

Quick start

The Sharp Bits (aka common mistakes)

JAX 101

1. JIT

2. Automatic vectorization

3. Pytrees

3.1 basics

3.2 key paths

3.3 common mistakes

3.4 common pytree patterns

4. Intro to parallel programming

4.1 Basics

4.2 auto sharding via jax.jit()

4.3 Explicit sharding (sharding-in-types)

4.4 Manual parallelism with shard_map

4.5 Data / computation placement on devices

5. Structured control flow with JIT

6. Static vs traced ops

7. Stateful computation

4.2 auto sharding via `jax.jit()`
